5+3Ton Double Deck Flatbed (FL-53H)

Description

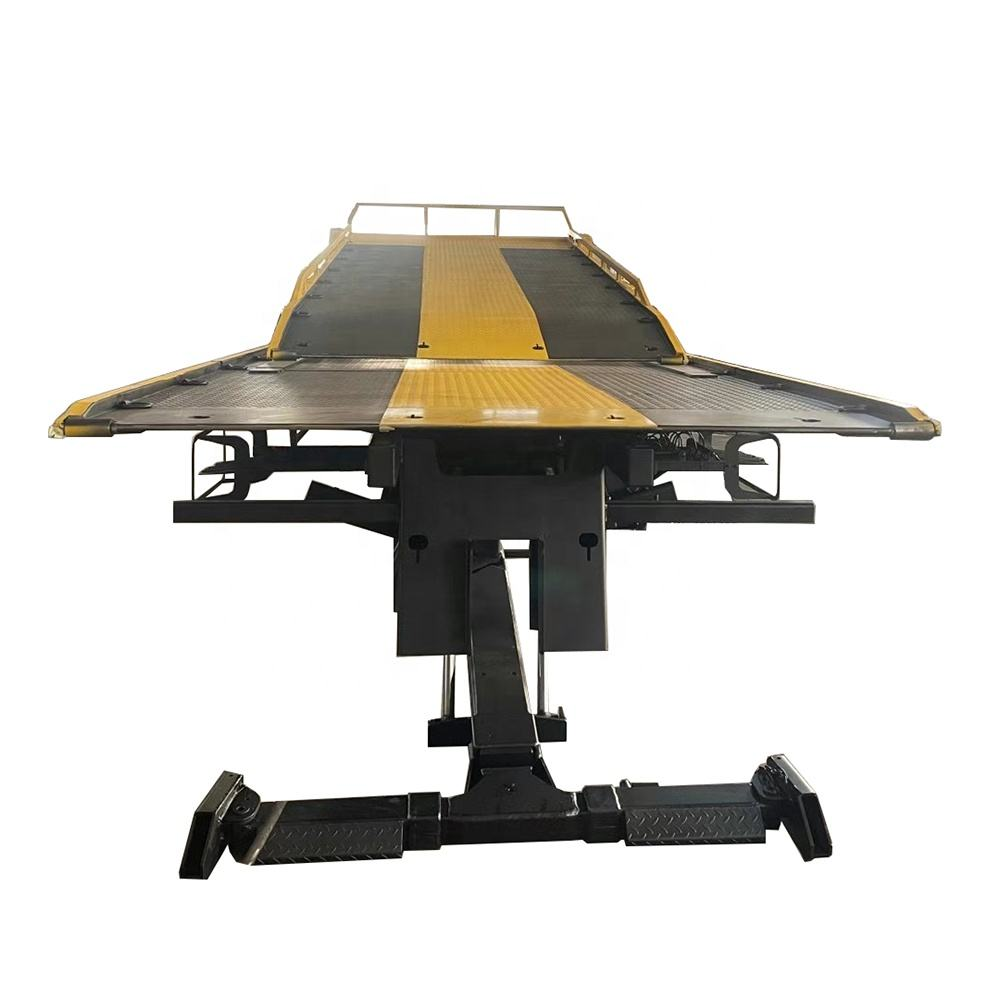

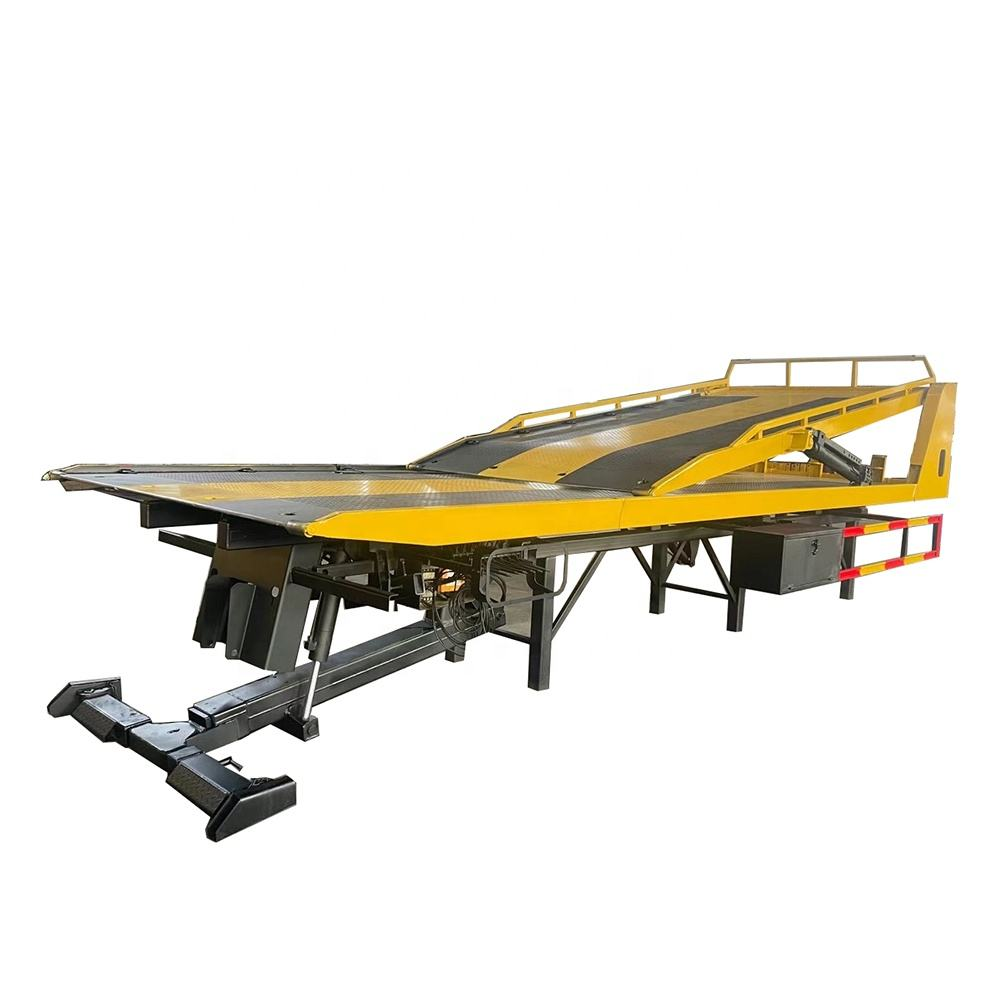

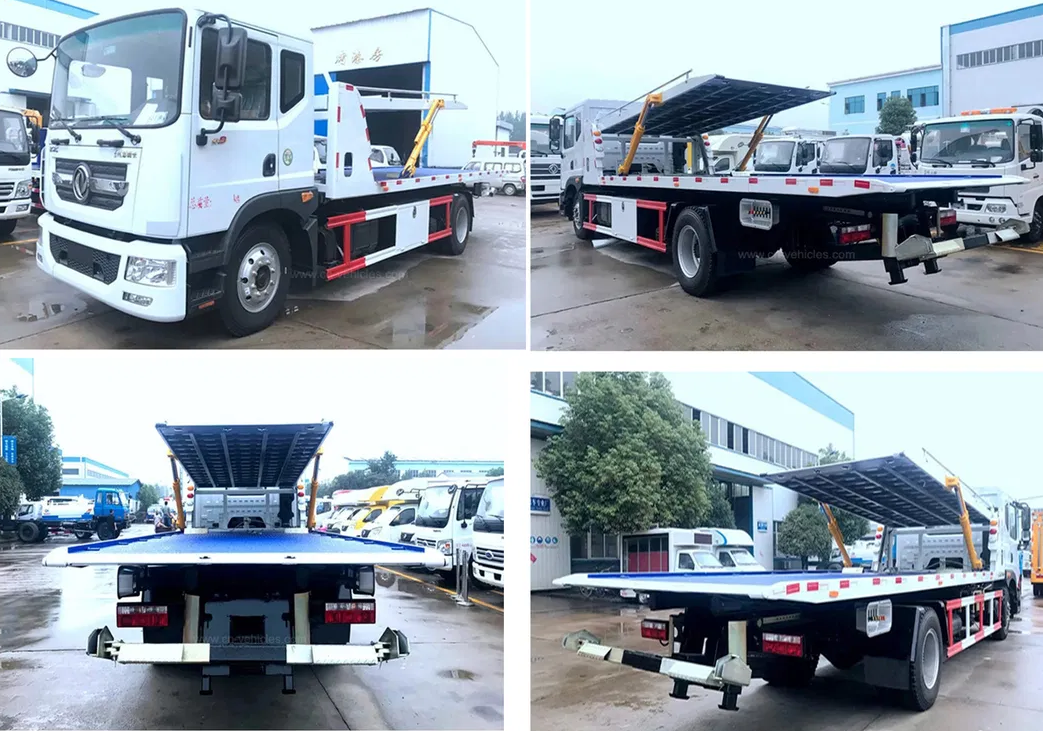

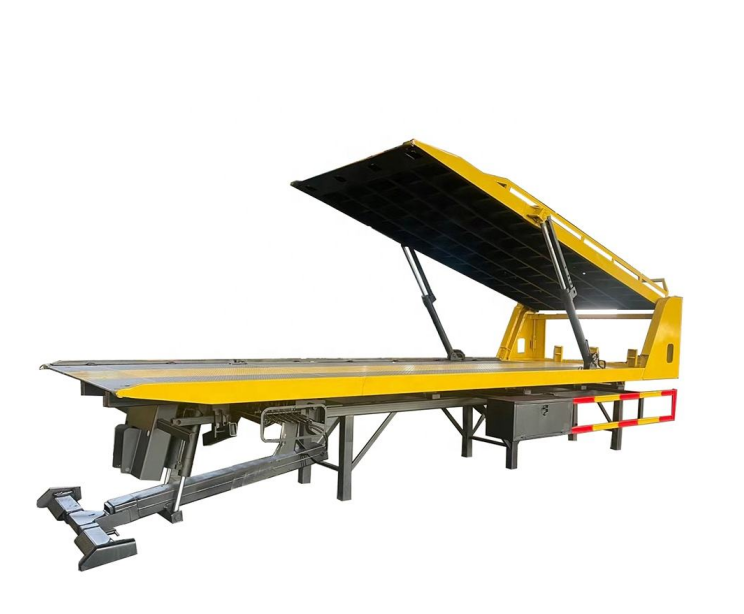

5+3Ton Double Deck Flatbed Towing Equipment

The FL-53H can load 3cars in one time(2 cars on the deck and 1 car on the wheel lifts).

With 5‑ton deck & 3 ton upper deck capacity,5ton rear tow underlift .

The FL-53H wrecker kits can provide a more‑efficient transportation solution for your towing business.

The Double-Deck is available for hauling up to 3 vehicles, even 4 vehicles on 30”+ long deck .

We will make 3D drawing according to fit your chassis for free. Any inquiry, please contact me now.

Specifications

• 5,000kgs(11,000lbs) Under Deck + 3,000kgs(6,600lbs) Upper Deck Load Rating
• 2,500kgs(5,500lbs) Wheel Lift Rating
• 5,000kgs(11,000lbs) Tow Rating with Underlift

Standard Features

• Under deck length of 6000mm (20′)
• Upper deck length of 4500mm (15′)
• Standard width of 2300 mm (7.55′)
• 5000kgs (11,000lbs) hydraulic winch
• 2500kgs(5500lbs) underlift
• Toolbox & Mud Guard
• Light, Spare Tire & Dolly holders
• Double side manual and remote control system
• 2units small dollies for moving wrecker car
• Safety Ratchet Straps*4
• Frame, L-type wheel holders
• Customized painting

Options

• Custom storage system
• Max 9100mm (30′) long platform
• Max 2500mm (98”) width desk
• Max 8000kgs(17,600lbs) underlift
• Double 6000kgs (13,000lbs) winch
• Full size LED light bar
• LED – working lights, strobe lights, warning light
• Chain Hooks
• High Speed wheel dolly

Chassis Recommendations

• GVW: Minimum 13,000kgs (28,600lbs)
• Wheel Base Size: 3,800mm – 7,200mm(12.5′-24′)
