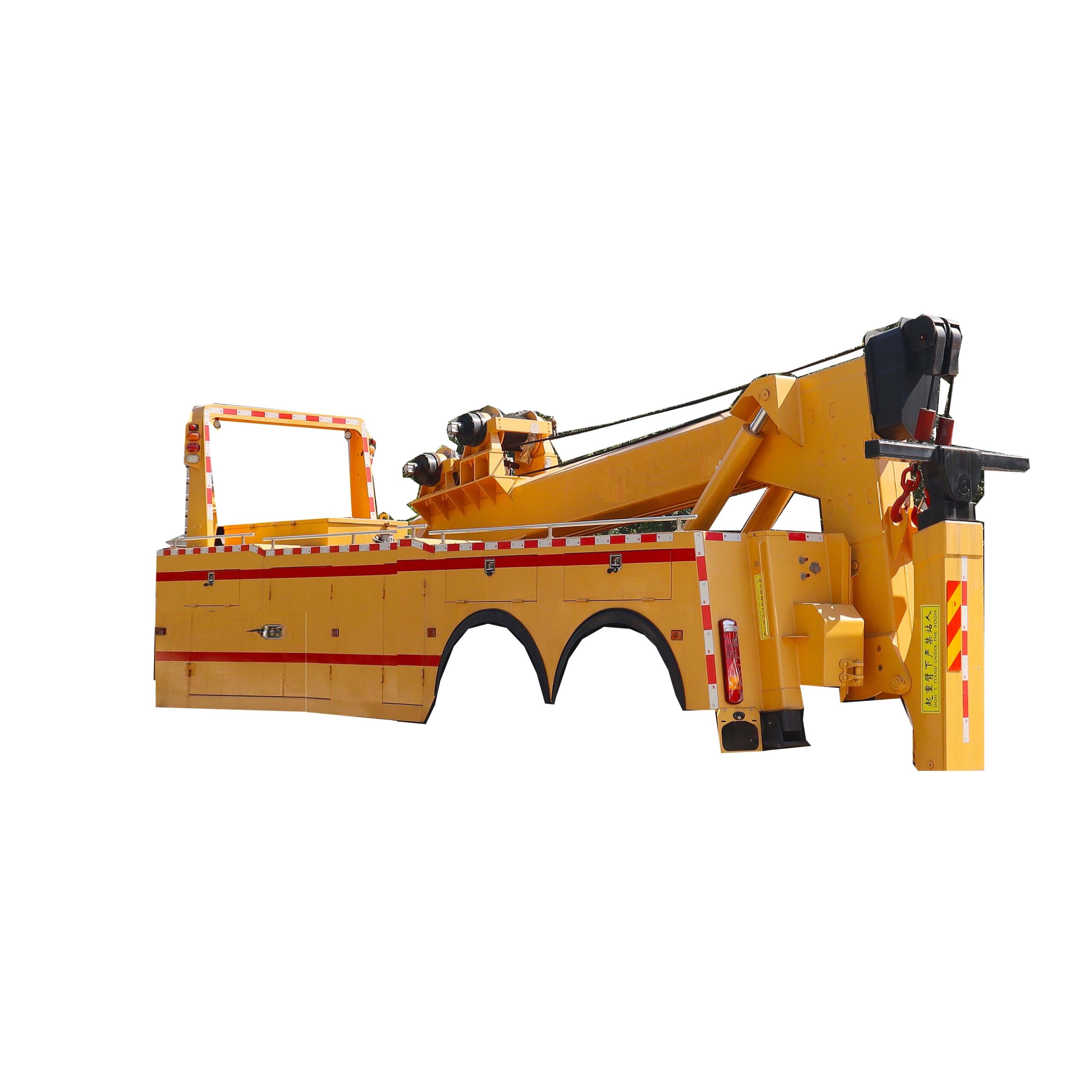

16Ton Heavy Duty Integrated Tow Equipment (IN-16)

Description

Heavy Duty 16Ton Integrated Towing Equipment

Upgrade your truck to 16ton integarted can tow middle-duty vehicles and passenger cars.

Standard 16ton underlift and 2 units 8ton winches.

Free design to fit your truck, 25days fast production. Any interested,  please contact me now.

Specifications

• 16,000kgs(35,000lbs) Retracted Underlift Rating
• 7,000kgs(16,000lbs) Extended Underlift Rating
• 36,000kgs(80,000lbs) Tow Rating with Underlift
• Doulbe 8,000kgs(17,600lbs) winches
• 20,000kgs(44,000lbs) crane boom

Standard Features

• Rear Hydrualic Legs
• Tow forks, receivers and bus wheel scoop holder
• Remote control system
• Tows Car, Middle-duty vehicles,Bus
• Big Toolbox on each side
• Hydraulic system
• Daul manual control system on each side
• Fitting rear single and double axle truck
• Safety chains – 2units
• LED light system
• Customize painting

Options

• 1-8ton loading dolly
• 10,000kgs(22,000lbs) winch
• P.T.O. and Hydraulic pump
• Extra tow forks and chains
• LED – working lights,  warning light
• 5th Wheel Plate
• By container shipment (LCL or FCL)

Chassis Recommendations

• Wheel Base Size: 4,000mm+ (13’+) or double rear axle
• Reccomended GVW : (Min.)13.6 ton (30,000 lbs)
